Anping Blue Star Metal Wire Mesh Products Co., Ltd Quality first,customer first,integrity management,the pursuit of excellence!
7 Years
| Ask Lasest Price | |
| Brand Name : | BS•EVER |
| Model Number : | Stainless Steel Plain Crimped Wire Mesh |
| Certification : | ISO 9001:2015 |
| Payment Terms : | T/T, L/C, Western Union, MoneyGram |
| Price : | negotiable |
| Supply Ability : | nearly 100 rolls per day |
| Delivery Time : | Depend on order |
Silver Bright Stainless Steel 304/304L /316 /316L Crimped Wire Mesh With light&heavy type for Filter/BBQ/Ming/Decorative
| Material | Iron wire/black wire, stainless steel wire 301, 302, 304, 304L, 316, 316L, 321 copper wire and other non-ferrous metal. |
| Weaving | Pre-crimping before Weaving. In two-way separated wave bending, locked bending, flat-topped curved, two-way bending, one-way separated wave bending. |
| Features | 1)High tension: Much higher tension than common polyester mesh and
smooth tension; 2)Super precision: Uniform wire diameter and aperture with
extremely low difference; |
Diameter 1.0mm x mesh opening 8mm or 10mm
Diameter 1.5mm x mesh opening 12.5mm, 15mm or 20mm
Diameter 3mm x mesh opening 15mm, 20mm, 30mm
Length and width specifications: 1mX25m 1mX30m 1.2mX25m 1.2mX30m
We can produce as per customers' data request or design for you
Stainless steel 304 material parameter:
Common specification
| Wire Gauge SWG | Wire Diameter (mm) | Mesh/Inch | Aperture(mm) | Weight(kg/m²) |
| 14 | 2 | 21 | 1 | 4.2 |
| 8 | 4.05 | 18 | 1 | 15 |
| 25 | 0.5 | 20 | 0.61 | 2.6 |
| 23 | 0.61 | 18 | 0.8 | 3.4 |
| 24 | 0.55 | 16 | 0.1 | 2.5 |
| 24 | 0.55 | 14 | 0.12 | 4 |
| 22 | 0.71 | 12 | 0.14 | 2.94 |
| 19 | 1 | 2.3 | 0.18 | 1.45 |
| 6 | 4.8 | 1.2 | 2 | 20 |
| 6 | 4.8 | 1 | 2 | 20 |
| 6 | 4.8 | 0.7 | 3 | 14 |
| 14 | 2 | 5.08 | 0.3 | 12 |
| 14 | 2 | 2.1 | 1 | 2.5 |
| 14 | 2 | 3.6 | 1.5 | 1.9 |
| Wire diameter(mm) | Mesh Size(mm) | Width (m) X Length (m) (in rolls/sheet) |
| 12.0 | 100×100 | 1.0MX2.0M /15M/1.5Mx2M/2X4M |
| 12.0 | 80×80 | 1.0MX2.0M/15M /1.5Mx2M/2X4M |
| 12.0 | 50×50 | 1.0MX2.0M/15M /1.5Mx2M/2X4M |
| 10.0 | 80×80 | 1.0MX2.0M /15M/1.5Mx2M/2X4M |
| 10.0 | 60×60 | 1.0MX2.0M /15M/1.5Mx2M/2X4M |
| 10.0 | 40×40 | 1.0MX2.0M /15M/1.5Mx2M/2X4M |
| 8.0 | 60×60 | 1.0MX2.0M /15M/1.5Mx2M/2X4M |
| 8.0 | 40×40 | 1.0MX2.0M /15M1.5Mx2M/2X4M |
| 8.0 | 25×25 | 1.0MX2.0M /15M1.5Mx2M/2X4M |
| 6.0 | 40×40 | 1.0MX2.0M /15M1.5Mx2M/2X4M |
| 6.0 | 30×30 | 1.0MX2.0M /15M1.5Mx2M/2X4M |
| 6.0 | 20×20 | 1.0MX2.0M /15M/1.5Mx2M/2X4M |
| 5.0 | 30×30 | 1.0MX2.0M /15M/1.5Mx2M/2X4M |
| 5.0 | 20×20 | 1.0MX2.0M /15M/1.5Mx2M/2X4M |
| 5.0 | 15×15 | 1.0MX2.0M /15M/1.5Mx2M/2X4M |
| 4.0 | 20×20 | 1.0MX2.0M /15M/1.5Mx2M/2X4M |
| 4.0 | 15×15 | 1.0MX2.0M /15M/1.5Mx2M/2X4M |
| 4.0 | 10×10 | 1.0MX2.0M /15M/1.5Mx2M/2X4M |
| 3.0 | 15×15 | 1.0MX2.0M /15M1.5Mx2M/2X4M |
| 3.0 | 10×10 | 1.0MX2.0M /15M/1.5Mx2M/2X4M |
| 3.0 | 5.0×5.0 | 1.0MX2.0M /15M/1.5Mx2M/2X4M |
| 2.0 | 8.0×8.0 | 1.0MX2.0M /15M/1.5Mx2M/2X4M |
| 2.0 | 5.0×5.0 | 1.0MX2.0M /15M/1.5Mx2M/2X4M |
| 1.5 | 5.0×5.0 | 1.0MX2.0M /15M/1.5Mx2M/2X4M |
| 1.5 | 4.0×4.0 | 1.0MX2.0M /15M/1.5Mx2M/2X4M |
| 1.0 | 3.0×3.0 | 1.0MX2.0M /15M/1.5Mx2M/2X4M |
| 0.7 | 1.5×1.5 | 1.0MX2.0M /15M/1.5Mx2M/2X4M |
| 0.45 | 0.9x0.9 | 1.0MX2.0M /15M/1.5Mx2M/2X4M |
| We can produce as clients' specific requirement. | ||

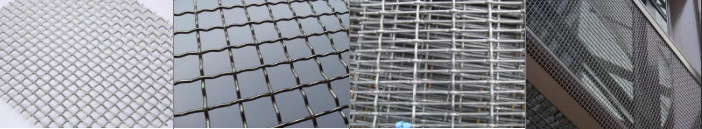

Weaving Method and Corresponding application
 | |||
Type 1: Plain crimped Usage: filter industrial | Type 2: Intermediate crimped Usage: BBQ mesh | Type 3: Lock crimped Usage: Mining sieve mesh | Type 4: Flat top crimped Usage: decorative and pig |
Different Material & Type Show
Advanatges of us
1. Our company produce various specifications,models as per standards
2. Using high -quality material and advanced production technology and equipment for processing
3. Applicable to a humid climate and the harsh corrosive enviroment
4. Products has been exported to Europe,North American,the Middle East,South East Asia,Africa,Asia,European,other countries and regions
5. Our tenet is Prestinge First, Quality First,Efficiency First and Service First.
6. All inquires will be replied within 8 hours
7. High Quality, Reasonable prices, prompt delivery, perfect after-sales services.
8.Quality Quarantee:
A. All goods strictly inspected during production.
B. All products must be checked strictly before packing.
C. Every consignment must be re-inspected before shipment.
D. You are more than welcomed to my factory to inspect the goods at any time.
Application of stainless steel woven crimped wire mesh
Used for mines, coal plants, construction and other industries;
Used for breeding;
Used for food;
Used for decoration;
Various industrial baskets, handicrafts, kitchen, refrigerator
storage baskets.
|
|
