    Custom 316 Stainless Steel Mesh , 500 / 3500 Mesh Dutch Weave Wire Mesh

    Ask Lasest Price
    Brand Name : BS-EVER
    Certification : ISO9001-2015
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2 CONTAINERS/MONTH
    Delivery Time : 15 DAYS/Container
    • Product Details
    • Company Profile

    Custom 316 Stainless Steel Mesh , 500 / 3500 Mesh Dutch Weave Wire Mesh

    Up to 3200 Meshes Plain/Twill weaved Dutch Wire Mesh for Sieving and Filtering in Petroleum Industry/Chemical Industry

    Custom 316 Stainless Steel Mesh , 500 / 3500 Mesh Dutch Weave Wire MeshCustom 316 Stainless Steel Mesh , 500 / 3500 Mesh Dutch Weave Wire Mesh
    1. Material:

    304,316,304L,316L,310S,430,317L,904L,Hastelloy,N6,Anti high temperature materials ect.


    2.Weaving Pattern:

    plain dutch weave,twill-dutch weave,double warp dutch weave,reverse plain dutch weave,reverse twill dutch weave

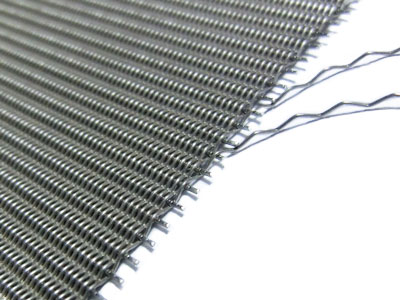

    1) Plain Dutch weave: woven as a plain weave. Each warp wire and each weft wire passes over and under the next adjacent complementary wire, as in normal Plain Weave, except the warp wires are larger in diameter than the weft wires. This allows a greater mesh count in the weft direction.
    Characteristics: ”zero”—aperture, more solid than square or rectangular mesh, relative high open area, suitable for all kinds of filtration.

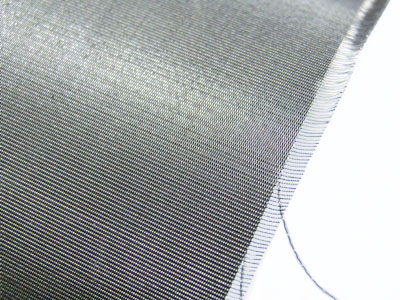

    2) Dutch twilled weave: Each warp wire and each weft wire passes over and under the next two adjacent complementary wires, as in a normal Twill Weave, except the warp wires are larger in diameter than the weft wires. This allows a greater mesh count in the weft direction. This weave pattern enables the weft wires to be woven more densely, and much smaller aperture sizes can be achieved without forsaking cloth thickness.
    Characteristics: ”zero” aperture, light-proof woven, high resistance due to tight wire position, extreme low absolute grade of fineness(down to 5-6μm),high filtration performance in case of low viscose medium, it is the finest filtration in hydraulic systems, especially for critical applications as aero-space, fuel-and combustion.

    3) Reverse Dutch weave: The apparent difference of Reverse Dutch Weaving compared with standard Dutch weave lies in the thicker warp wires and less weft wires. Reverse Dutch woven stainless steel wire cloth offers finer filtration and finds popular application in petroleum, chemical, food, pharmacy and other fields.


    3. Specs of Dutch Weave mesh

    Stainless Steel Wire Cloth (Plain Dutch Weave)


    Mesh/InchWire DiameterAperture
    VerticalHorizontalVerticalHorizontalMicrons
    12mesh64mesh0.62mm0.42mm270-290um
    14mesh80mesh0.50mm0.30mm220-240um
    24mesh110mesh0.38mm0.25mm115-125um
    30mesh160mesh0.23mm0.18mm95-100um
    40mesh200mesh0.18mm0.14mm70-75um
    50mesh250mesh0.14mm0.11mm60-63um

    Stainless Steel Wire Cloth (Twill Dutch Weave)


    Mesh/InchWire DiameterAperture
    VerticalHorizontalVerticalHorizontalMicrons
    20mesh250mesh0.25mm0.23mm110-120um
    32mesh360mesh0.23mm0.15mm100-110um
    40mesh400mesh0.18mm0.14mm90-110um
    50mesh500mesh0.14mm0.11mm70-90um
    50mesh600mesh0.14mm0.09mm60-70um
    80mesh800mesh0.12mm0.07mm45-65um
    165mesh800mesh0.07mm0.05mm24-26um
    120mesh1000mesh0.08mm0.055mm27-28um
    165mesh1450mesh0.07mm0.04mm16-18um
    325mesh2300mesh0.038mm0.025mm8-9um

    4. Property:with anti-acid,anti-alkali,anti-high temperature,wear-resistant properties.

    5. Application: petroleum, chemical, automotive, new energy, food, pharmaceutical and other industries.

    Custom 316 Stainless Steel Mesh , 500 / 3500 Mesh Dutch Weave Wire Mesh

    6. Process

    Custom 316 Stainless Steel Mesh , 500 / 3500 Mesh Dutch Weave Wire Mesh

    7. Packaging:


    Quality Custom 316 Stainless Steel Mesh , 500 / 3500 Mesh Dutch Weave Wire Mesh for sale
