Monel 400/ Inconel 600 Knitted Wire Mesh With Wire Dia 0.1-0.3mm as Economical Gaskets for EMI Shielding

1.Monel knitted wire mesh

Monel knitted wire mesh/gaskets are produced by special weaving machines, use monel wire as raw material, the finished product is knitted wire mesh tube. Monel knitted wire mesh is most commonly used as economical gaskets for EMI shielding.

BLUE-STAR WIRE MESH can offer monel knitted wire mesh in the standard specifications, opening sizes range from 1 mm x 1 mm to 6 mm x 6 mm, while wire diameters range from 0.10 mm to 0.28 mm, and the manufactured width is up to 600 mm, although more typically 20 mm to 100 mm. The standard wire material are Monel 400.

Monel 400 is an extremely combination property nickel alloy contains approximately 67% nickel, 28% copper and 5% others, in the hydrofluoric acid and fluoride gas medium with excellent corrosion resistance, it is more resistant to oxidation than higher copper alloys and more resistant to reducing conditions than nickel.

2. Benefits

Greater strength and toughness

Light weight and durable

High temperature and excellent corrosion resistant

Soft and nonmagnetic

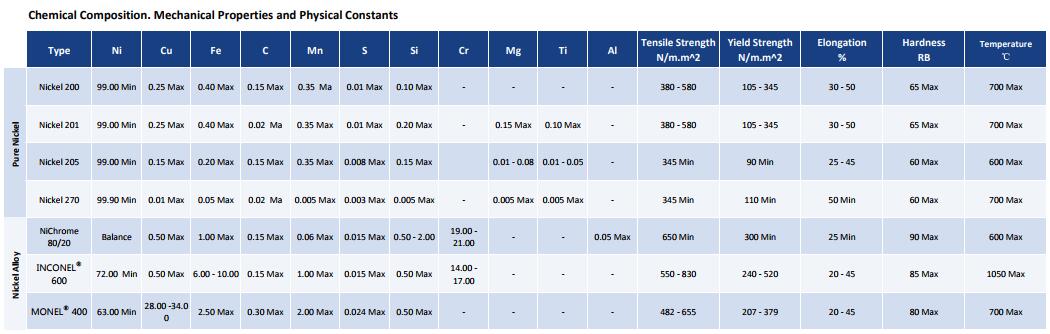

3. Monel knitted wire mesh materials

Knitted wire mesh is available in three series of different wire materials:

Pure nickel: Nickel 200/201, Nickel 270

Nickel Alloy: Cr20Ni80, Monel 400, Inconel 600

4. Application

Usage of Monel knitted wire mesh includes:

In the EMI & RFI shielding applications, for shielding gaskets, elastomer cores and cable wrap.

In the filtration & separation applications, for the screen of the mist eliminator.

5. Monel knitted wire mesh rolls

Roll width 5 mm, 15 mm, 25.4 mm, 50.8 mm to 600 mm (measured on flat)

Roll length 15 m, 30 m, 50 m to 200 m

6. Weave type

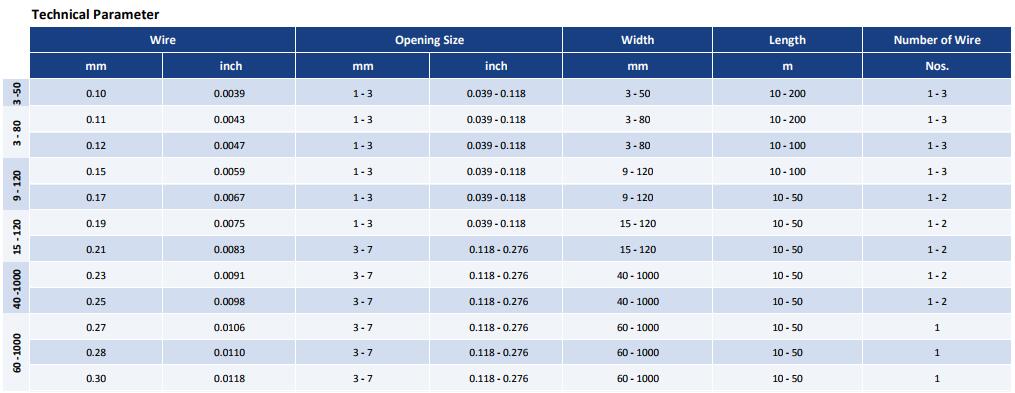

7.Technical parameter

8. When ordering or requesting a quote for monel knitted wire mesh, please specify:

Number of length 30 m rolls or size required

Width eg. 25.4 mm

Diameter of wire eg. 0.11 mm

Aperture eg. 1 mm x 1 mm

Material eg. Monel 400

Monel and Inconel is registered trademark names of International Nickel Co INCO

Anping Blue Star Metal Wire Mesh Products Co., Ltd was founded in 2002 and it originated from Blue Star Wire Mesh Factory which started since the year 1992. It is located in eastern industrial zone of Anping County, Hebei of China, with a land area of 7600 square meters, workshop of 4000 square meters and a staff of 82 people. Blue Star is known in the trade with its good quality, reasonable price and timely delivery.

Our main products include knitted wire mesh, wire mesh demister,stainiless steel woven wire mesh, etc. These products find extensive uses in petroleum, chemical industry, pharmacy, chemical fiber, paper-making, electronics, construction, aerospace and other fields.
