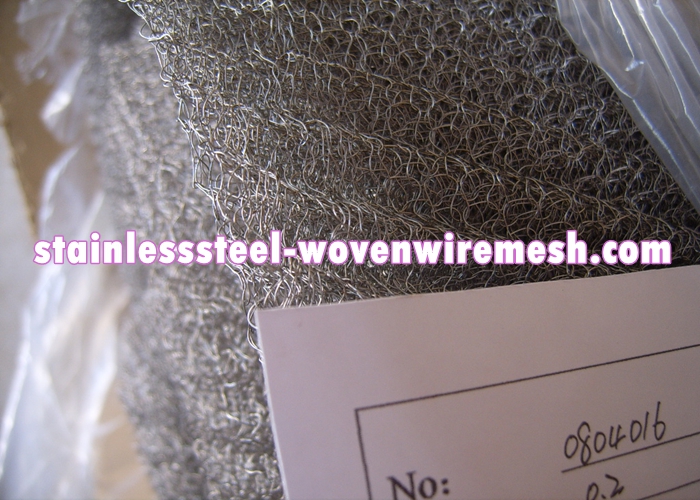

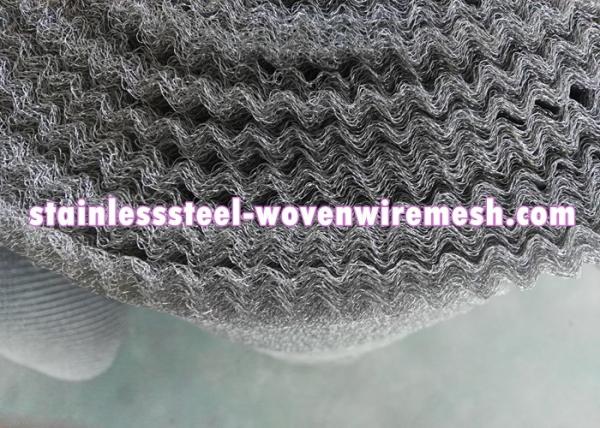

Crimped Bright Silver SS Knitted Wire Mesh With Width 30" / 42 Inchs and Wire Diameter 0.008" For Filter
Knitted Wire Mesh,we also call it gas-liquid filter screen is a special type of woven wire mesh, mainly used in the manufacture of demister, oil-gas separator, engine muffler, mechanical damping and so on.
Material: Generally made of stainless steel 304, other materials 304L, 316, 316L, 321, 201, 2205, etc.is also ok.
| ITEMS 304 | C | Si | Mn | P | S | Ni | Cr |
| <0.08 | <1.00 | <2.00 | <0.045 | <0.03 | 8-10.5 | 18-20 |
Wire diameter: 0.28mm round wire. Most common: 0.20mm-0.28mm.
Width: 6" - 58". Common width: 30 inch & 42 inch.
Stainless Steel Features: resistant to air, steam, water and other weak corrosive media and acid, alkali, salt and other chemical etching medium corrosion steel. Also known as stainless acid-resistant steel. In practical applications, steel that is resistant to weak corrosive media is often referred to as stainless steel, while steel that is resistant to chemical media is referred to as acid-resistant steel. Due to the difference in chemical composition between the two, the former is not necessarily resistant to chemical media corrosion, while the latter generally has rust. The corrosion resistance of stainless steel depends on the alloying elements contained in the steel. Chromium is the basic element for obtaining corrosion resistance of stainless steel. When the chromium content in steel reaches about 12%, chromium reacts with oxygen in the corrosive medium to form a thin oxide film (self-passivation film) on the steel surface. It can prevent further corrosion of the steel matrix. In addition to chromium, commonly used alloying elements are nickel, molybdenum, titanium, niobium, copper, nitrogen, etc., to meet the requirements of stainless steel structure and performance for various purposes. Stainless steel gas-liquid filters generally require acid-resistant steel.
Product Type: (SP standard type) (DP high efficiency type) (HP high penetration
type)
Specifications of Knitted Mesh
| Type | Specification |
| Standard type | 40-100 60-150 105-300 140-400 160-400 200-570 |
| High-efficiency type | 60-100 80-100 80-150 90-150 150-300 200-400 300-600 |
| High-penetration type | 20-100 30-150 70-400 100-600 170-560 |
| Damping type | 33-30 38-40 20-40 26-40 30-40 30-50 48-50 30-60 30-80 50-120 |
Knitted Wire Mesh application areas:
◆ Knitted Wire Mesh to make wire mesh demister filter pads.
◆ Knitted Wire Mesh is used for filtration devices such as gas-liquid separation, gas-water separation, and oil-water separation.
◆ Knitted Wire Mesh is made into an air filter on an engine such as a car or a tractor.
◆ Knitted Wire Mesh is used for sealing, shock absorption (shock absorber), noise reduction and exhaust gas purification components in automotive parts.
◆ Knitted Wire Mesh is made of high-conductivity wire to make shielding devices for anti-electromagnetic interference of electronic and electrical products.
|
|
