Material: low carbon steel plate,stainless steel plate, brass plate,alumium
plate,nickel plate and various of metal and nonmetal plate
Different material hold their unique characteristics for specific applications:
Stainless steel perforated metal sheet:Corrosion resistance, acid and alkali resistance, moisture resistance, good stability, not easy damage, long service life, beautiful and generous.
Aluminum perfcorated plate: light weight, steel soft, high tensile strength, good corrosion resistance, average coating and various colors,convenient installation,can be made into a variety of crafts, can be recycled, environmental protection
Hole shape: Round hole, square hole. Slot hole round ends, slot hole, triangle hole, hexagonal hole, scale hole. Rectangular hole, Cross, Diamond etc.
Hole pattern:
60° staggered: 60° the plum flower arrangement in the natural high strength and wide opening rate and striking appearance become one of the most popular choice.
45 ° staggered: compared with the former, 45 ° plum flower arrangement gives people another choice
Straight line: another way to arrange round holes is to align the holes. There can be various holes and hole opening rates, but it is the least compressive of the round holes
Round hole: Plate thickness 0.4-6.0mm
Hole size: 1.0-25mm
Center to center distance: 3-34mm
Opening rate: 23%-49%
Square holes: Plate thickness 0.8-3.0mm
Hole size 3.0-50.0mm
Center to center distance: 5.0-100.0mm
Opening rate: 16%-64%
Slot holes round ends: Plate thickness: 0.5-3.0mm
Hole size: 1.0x1.0mm - 10 x 45mm
Center to center distance: 4.0 X6.0 - 20 x 60mm
Opening rate: 18%-76%
Perforated metal surface treatment:
Specification of perforated mesh metal:
common Coil:0.2-1mm plate thickness,hole diameter:0.8mm-1mm,1x20m(widthx Length)
common flat panel:0.mm-10mm thickness,0.8mm-100mm hole diamter, 1x2m(widthxLength)or ≤3m*5m
can also be customized according to customer needs processing
Production process: Mould-Punching-Cutting-Edge
trimming-Leveling-Cleaning
Plate Material | Thickness of Metal (mm) | Hole Dia. (mm) | Pitch (mm) | Sheet Width (m) | Sheet Length (m) | Porosity (%) | Weight (kg/m2) |
Rolling plate | 0.2 | 6 | 2 | 1 | 20 | 44 | 0.88 |
0.35 | 5 | 4 | 1 | 20 | 24 | 2 | |
0.45 | 6 | 3 | 1 | 20 | 35 | 2.5 | |
0.8 | 3 | 3 | 1 | 20 | 19.6 | 3 | |
Flat plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
0.55 | 1.1 | 2.2 | 1 | 2 | 22.67 | 3.411 | |
0.55 | 1.5 | 2.8 | 1 | 2 | 26.03 | 3.268 | |
0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
0.8 | 2.0 | 3.4 | 1 | 2 | 30.78 | 4.465 | |
1.5 | 2 | 2 | 1 | 2 | 19.6 | 9.4 | |
1.5 | 5.0 | 8.0 | 1 | 2 | 35.39 | 7.843 | |
3 | 5 | 16 | 1 | 2 | 19.6 | 18.8 | |
Stainless steel plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
1 | 2 | 2 | 1 | 2 | 19.6 | 6.28 | |
2 | 5 | 16 | 1 | 2 | 19.6 | 6.28 | |
Aluminum plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 1.08 |
0.8 | 3 | 3 | 1 | 2 | 19.6 | 1.72 | |
1.6 | 2 | 2 | 1 | 2 | 19.6 | 3.24 | |
3 | 4 | 16 | 1 | 2 | 19.6 |
| ROUND HOLES STAGGERED PATTERN | |||
| HOLE | CENTERS | GAUGE / PLATE THICKNESS | OPEN AREA |
| .020" RD | .045" Stag | 26 | 18% |
| 1/32" RD | 1/16" Stag | 22 | 23% |
| 3/64" RD | 5/64" Stag | 24 | 33% |
| 3/64" RD | 3/32" Stag | 22 thru 18 | 23% |
| 1/16" RD | 3/32"Stag | 22 thru 16 | 40% |
| 1/16" RD | 7/64" Stag | 20 thru 16 | 30% |
| 1/16" RD | 1/8" Stag | 26 thru 16 | 23% |
| 5/64" RD | 1/8" Stag | 22 thru 14 | 35% |
| 3/32" RD | 5/32" Stag | 24 thru 14 | 33% |
| 3/32" RD | 3/16" Stag | 24 | 23% |
| .117 RD | 5/32" Stag | 18 | 51% |
| 1/8" RD | 3/16" Stag | 24 thru 11 | 40% |
| 1/8" RD | 7/32" Stag | 14 thru 12 | 30% |
| 1/8" RD | 1/4" Stag | 14, 13 | 23% |
| 9/64" RD | 3/16" Stag | 18 | 51% |
| 5/32" RD | 3/16" Stag | 22 thru 16 | 63% |
| 5/32" RD | 1/4" Stag | 20 thru 10 | 35% |
| 3/16" RD | 7/32" Stag | 22 thru 16 | 67% |
| 3/16" RD | 1/4" Stag | 24 thru 12 | 51% |
| 3/16" RD | 5/16" Stag | 10, 3/16" | 33% |
| 3/16" RD | 3/8" Stag | 14 thru 10 | 23% |
| 1/4" RD | 5/16" Stag | 20 thru 16 | 58% |
| 1/4" RD | 3/8" Stag | 26 thru 1/4" | 40% |
| 17/64" RD | 5/16" Stag | 20 | 66% |
| 5/16"RD | 7/16" Stag | 20 thru 1/4" | 46% |
| 3/8" RD | 9/16" Stag | 20 thru 1/4" | 40% |
| 1/2" RD | 11/16" Stag | 20 thru 1/4" | 48% |
| 1/2" RD | 3/4" Stag | 16 | 40% |
| 5/8" RD | 7/8" Stag | 10 thru 1/4" | 46% |
| 3/4" RD | 1" Stag | 16 thru 1/4" | 51% |
| 1" RD | 1-3/8" Stag | 10 thru 1/4" | 48% |
| 1-1/4" RD | 1-5/8" Stag | 1/4" | 54% |
| 1-1/2" RD | 2" Stag | 1/4" | 51% |
| 2" RD | 2-1/2" Stag | 1/4" | 58% |
| 2-1/2" RD | 3" Stag | 3/16" | 63% |
| 3" RD | 3-1/2" Stag | 3/16" | 67% |
| 4" RD | 4-1/2" Stag | 10 | 72% |
Perforated metal sheet charactieristics:
1). Various kind of hole patterns.it is beautiful
2). Accurate holes, bending resistance, corrosion resistance.
3). Easy to process and install, good sound absorption
4). Durable and long service life.
5). Attractive appearance and wide range of thickness available.

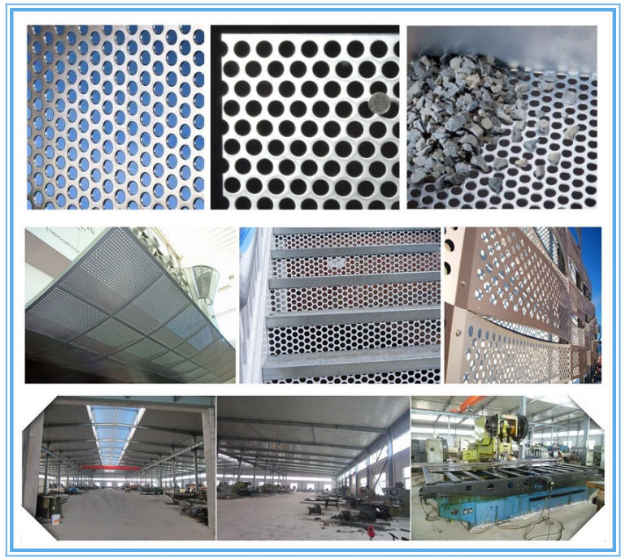

Perforated metal application:(screen/filter/decoration/ptptection)
Construction wall
Acoustic panel in factory workshop,generator room and other noise source
Acoustic material in ceiling,wall board
Decorate plate in stairs,balcony,environmental protection tables
Protection cover for machine
Screen cover for loudspeaker box
Fruit basket,food cover ,compote in kitchen
Shelf network in market
Decoration exhibition
Ventilation net in grain depo
Water percolation in football field turf
Perforated metal packing:
Perforated metal appears in roll type and flat type. They are
packed in wooden pallets generally and wrapped with plastic film.
We can also pack according to customer requirements.
|
|
