Anping Blue Star Metal Wire Mesh Products Co., Ltd Quality first,customer first,integrity management,the pursuit of excellence!
7 Years
| Ask Lasest Price | |
| Brand Name : | BS-EVER |
| Model Number : | HP/SP |
| Certification : | ISO9001:2015 |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C, Western Union, MoneyGram |
| Supply Ability : | 2 containers/month |
| Delivery Time : | 10-15 days |
stainless steel wire ,nickel wire ,copper wire, galvanized wire , iron wire , monel wire

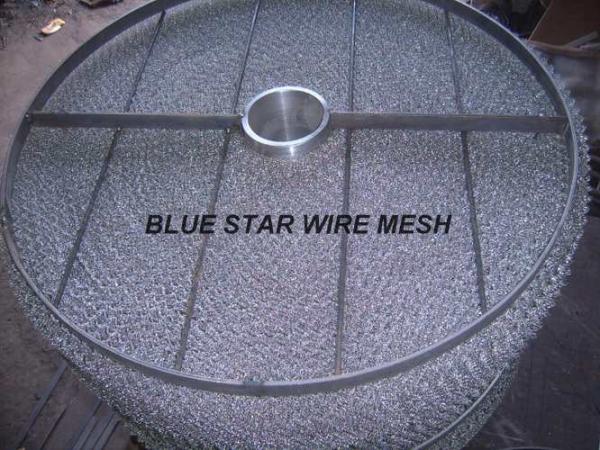

wire mesh demister specification
SP type demister pad. DP type demister pad. HR/HP type demister pad.
| Type | Standard wire specification |
|---|---|
| SP | 0.1 mm + 0.03 mm × 0.4 mm |
| DP | 0.1 mm + 0.02 mm × 0.3 mm |
| HR | 0.23 mm + 0.03 mm × 0.4 mm. |
| HP | 0.1 mm + 0.03 mm × 0.4 mm |
Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model :40-100 60-150 ,140-400
common diameter :0.20-0 .45 mm
form code: SP
Weight capacity: 168 Kg/m3
specific surface area: 529.6 m2/m3
porosity : 0.9788ε
High efficient type
Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model : 60-100 80-150 200-400 80-100 90-150
common diameter : 0.12-0.45mm
form code: HR
Weight capacity: 128 Kg/m3
specific surface area: 403.5 m2/m3
porosity : 0.9839ε
shock absorption type
Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model : 20-40, 30-80, 40-120,50-120
common diameter : 0.21mm
form code: HR
Weight capacity: 168 Kg/m3
specific surface area: 529.6 m2/m3
porosity : 0.9788ε
>High removal efficiency
>Negligible pressure drop, less than 25mm of water gauge
>No maintenance or service required
>No corrosion or temperature limitations
>Easily installed in existing vessels
>No limitation on size or shape.
|
|
