Anping Blue Star Metal Wire Mesh Products Co., Ltd Quality first,customer first,integrity management,the pursuit of excellence!
7 Years
| Ask Lasest Price | |
| Brand Name : | BS•EVER |
| Model Number : | Stainless Steel Welded Wire Mesh |
| Certification : | ISO 9001:2015 |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C, Western Union, MoneyGram |
| Supply Ability : | 1000 Sq.m/ Day |
| Delivery Time : | According to the Quantity Ordered |

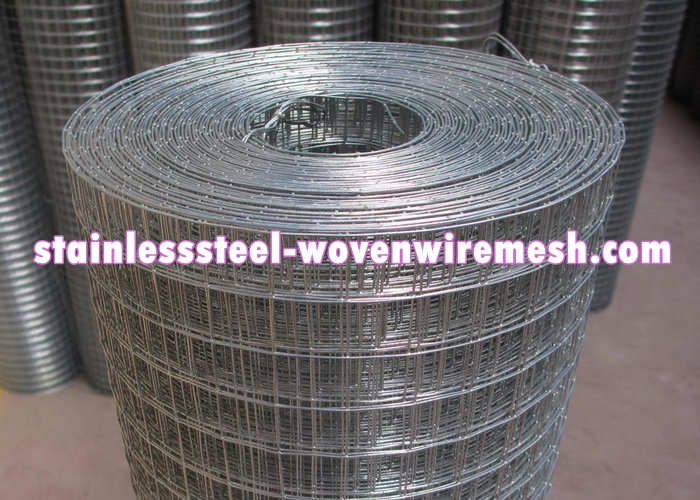

Stainless Steel Welded Wire Mesh With Different Material in Sheet / Roll
Chinese leading welded wire mesh supplier, we have the widest range
of mild steel galvanised and self-colour wire mesh and stainless
steel welded mesh available from stock. From the lightest welded
mesh rolls up to heavy industrial wire mesh panels, we will have a
wire mesh suitable for all your application requirements.
Welded mesh is widely used in domestic and industrial applications.
In workshops or factories, security mesh can be used for window
grilles or as machinery guards. In warehouses, it can be used for
racking, storing and as anti-collapse mesh. Use it in your garden
for your plants and creepers or for animal care as aviary, rabbit
and kennel mesh and other protective enclosures. In farming, feed
racking systems, rearing cages etc. are often built with welded
mesh. It can also be utilised in construction, civil engineering
and transportation in addition to architectural mesh applications
such as walkways, balustrades and cladding.
We also offer a range of mesh clips, netting fasteners, winders and
other accessories for joining mesh panels and for fixing Weldmesh
to brickwork or racking. Reinforcing mesh and wire fabric for
concrete is available.
Trim and Stub Options
We offers a variety of trim and stub options to suit your needs.
Contact one of our knowledgeable sales representatives if you’re
not sure which option is best for your project.
Trimmed: Minimum on all four sides approximately 1/16″-1/8″ long. Trimmed
flush (no stubs) must be specified when required.
Untrimmed Balanced Stubs: Equal stubs on opposite sides only. Stubs will not exceed opening
unless specified.
Balanced Stubs with Edge Wire: Equal stubs on opposite sides with welded edge wire. (Special
order only)
Untrimmed Random Stubs: Varies on all four sides. Results from shearing a larger sheet, pieces will not be identical.
Trimme Untrimmed Balanced Balanced Stubs Random Untrimmed
Materials: Stainless steel,Carbon Steel,Iron Steel,Galvanized,PVC,etc.
| Specification List of Welded Wire Mesh | ||
| Opening | Wire Diameter | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1" x 1" | 25.4mmX25.4mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
| 2" x 3" | 50mmx70mm | 2.0mm,2.5mm,1.65mm |
| 3" x 3" | 75mmx75mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
| 2" x 4" | 50mmx100mm | 2.11mm,2.5mm |
| 4" x 4" | 100mmx100mm | 2.0mm,2.5mm |
| Technical Note: 1, Standard roll length: 30m; width: 0.5m to 1.8m 2, Special sizes available at request 3, Packing: in waterproof paper in rolls. Custom packing available at request. | ||
|
|
